PRODUCT DESCRIPTION

Overview

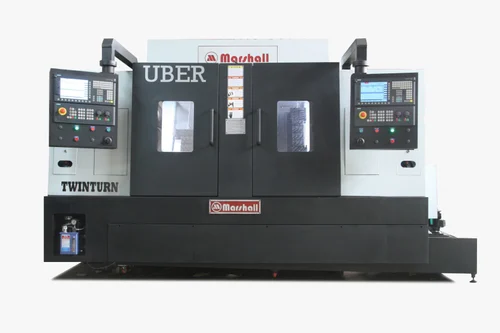

The TWINTURN UBER CNC Turning Machine stands out for its exceptional performance and precision. Designed for efficiency, this machine excels in various turning operations. Whether in a manufacturing facility or a specialized workshop, it meets the diverse needs of operators.

SmartFlow Technology
One of the most notable features is the SmartFlow technology. This innovation guarantees that the machining block receives 100% of the pump flow and pressure during operations. Consequently, this optimization leads to enhanced accuracy and significantly reduces cycle times.

Compact Design
Furthermore, the UBER boasts the most compact footprint in its class. It saves up to 40% more space compared to competitors’ single spindle machines. Therefore, this space-efficient design makes it ideal for workshops with limited room.

Key Specifications

• Swing Over Carriage Cover: 360 mm
• Maximum Turning Diameter: 250 mm
• Maximum Turning Length: 160 mm
• Maximum Boring Length: 150 mm

Main Spindle Features
Additionally, the UBER features an A2-5 spindle nose with an 85 mm front bearing bore. It offers maximum bar capacities of 38 mm (standard) and 42 mm (optional). These specifications enhance the machine’s versatility for various applications.

Spindle Drive
Moreover, the powerful spindle motor comes with options of 7.5/11 kW. It provides infinite variable speed ranges of 100-4500 rpm (standard) or 100-5500 rpm (optional). As a result, operators can efficiently tackle a wide range of machining tasks.

Precision and Control
In terms of precision, the UBER features a linear slide X-axis stroke of 500 mm. It accommodates up to 8 tools on each side, using a tool shank size of 25×25 mm. Furthermore, the positioning repeatability is ±1.5 microns on the X-axis and ±2.0 microns on the Z-axis. Therefore, users can expect exceptional accuracy in all operations.

CNC Controls
The UBER is equipped with advanced CNC controls from SIEMENS (808D/828D) or FANUC (0iTF). This technology streamlines operation and enhances overall productivity, ensuring a user-friendly experience.

Conclusion
In conclusion, the TWINTURN UBER CNC Turning Machine seamlessly combines cutting-edge technology with a compact design. Its robust features deliver outstanding performance in any machining environment. Thus, investing in the UBER will enhance your manufacturing capabilities, enabling you to achieve superior results in precision turning operations.
