PRODUCT DESCRIPTION
Overview

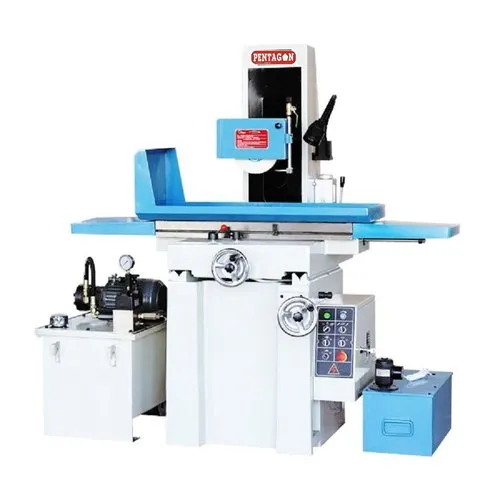

The Hydraulic Surface Grinder Model MY1022 is expertly designed for high-precision grinding tasks across various industrial applications. This robust machine combines advanced technology with durable construction, delivering exceptional performance essential for professionals seeking reliability and accuracy in their machining operations.
Key Features
1. Robust and Reliable Design
This grinder features a well-engineered structure that ensures excellent rigidity and stability during operation. Additionally, its attractive appearance enhances any workshop environment. Consequently, its user-friendly operation significantly improves the overall user experience.
2. Precision Worktable
The worktable is equipped with a ball track made from high-quality steel materials, featuring high-precision steel balls for enhanced abrasion resistance. As a result, this design allows for effortless movement and boosts work efficiency, ensuring smoother operation.
3. Super Precision Spindle
The spindle employs super precision ball bearings (P4 grade), which undergo rigorous selection processes to guarantee optimal performance. Importantly, its labyrinth design provides complete waterproofing, thus extending the service life of the bearings while maintaining surface roughness.
4. Vibration-Free Performance
This grinder is engineered for low noise and minimal vibration, ensuring smooth and consistent operation. Therefore, users can expect reliable performance without disruptive sounds, leading to a more pleasant working environment.
5. Customizable Options
Depending on user preferences, the grinder can be equipped with either a permanent magnet or an electromagnetic chuck. This adaptability enhances versatility, making it suitable for various grinding applications.
Standard Accessories Included
- Machine Lamp
- Coolant Pump
- Grinding Wheel
- Magnetic Chuck
- Balancing Stand
- Tool Box
- Operation Manual
Optional Accessories
- DRO Set with Scale Fitted (Rs 18,700)
Technical Specifications
- Table Size (L×W): 540 × 250 mm
- Max Movement of Working Table (L×W): 560 × 260 mm
- T-Slot (number × width): 1 × 14
- Max Distance from Spindle Center to Table Surface: 450 mm
- Wheel Size (Outer Diameter × Width × Inner Diameter): 200 × 20 × 31.75 mm
- Wheel Speed: 2850 rpm
- Longitudinal Speed of Working Table: 3-20 m/min
- Vertical Feed on Hand Wheel per Graduation: 0.01 mm
- Spindle Motor: 1.5 kW
- Coolant Pump Motor: 40 W
- Hydraulic Motor: 1.5 kW
- Working Pressure: 3 MPa
- Oil Tank Capacity: 80 L
- Max Flow: 18 L/min
- Parallelism of Working Surface to Base Level: 300 mm / 0.005 mm
- Surface Roughness: Ra 0.32
- Weight: 1050 kg
- Overall Dimensions (L×W×H): 1680 × 1220 × 1720 mm
Conclusion
In conclusion, the Hydraulic Surface Grinder Model MY1022 combines precision, durability, and versatility into one reliable tool. By investing in this high-performance grinder, you can significantly enhance your machining capabilities. Therefore, upgrade your workshop today to experience the improved productivity and superior results that this grinder can bring to your projects.
